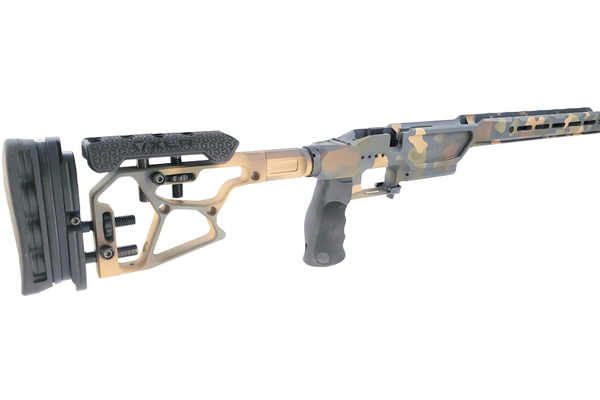

ENVY Pro Chassis Package

  • The new ENVY Pro rifle chassis was designed for precision rifle competition and is a true testament to the progressive nature of precision rifle shooting.  We have taken tons of feedback from our Pro Shooters and customers over the past year and have implemented their ideas to give you our most state-of-the-art chassis to date.  The new ENVY Pro features more tunability and adjustment than ever before and has even more integrated features to help you get the impact when it counts.

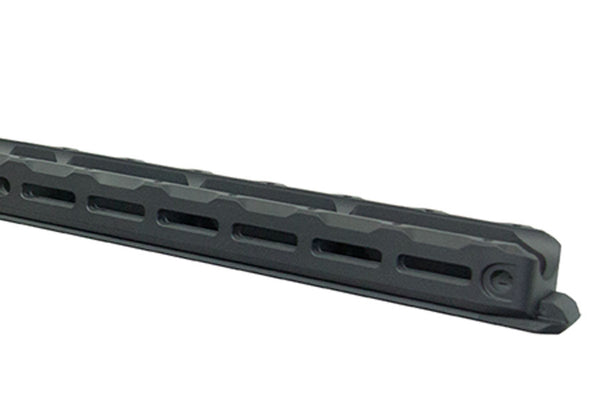

    The revised forend of the ENVY Pro is perhaps its most noticeable feature.  We increased the width of the forend to allow more MLOK slots and provide spacing for our new thumb rest scallops.  These new scallops give multiple areas and spacing for shooters to index their thumb when pinching a front bag.  The scallop feature surface area is increased with the use of our Envy Pro side weights and NV hood.

    At the front of the forend is a keyed nose piece that allows the shooter to set up with a lightweight aluminum dovetail nosepiece or they can extend the length of the integrated dovetail with a long, or extra-long brass nosepiece.  Moving to the inside of the chassis, you will find provisions for tunable internal brass weights.  Not only will this allow the shooter to add weight to their system, but also help find the perfect balance point.

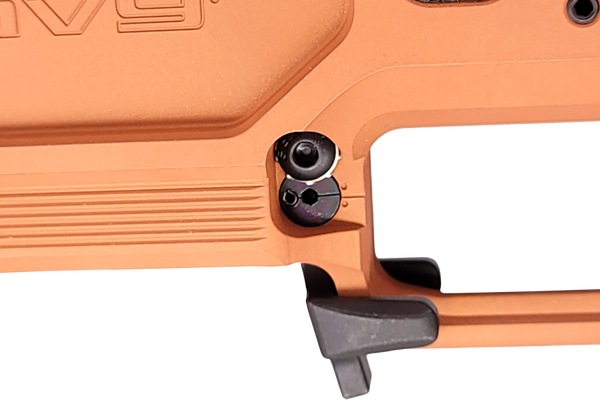

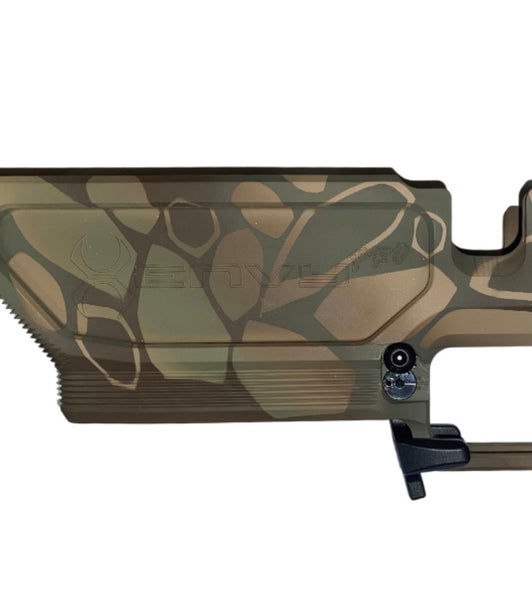

    Now featured on the Envy pro is an adjustable DBM latch! This allows magazine feeding to be tuned easier than ever, and once adjusted it is locked and will not move. Great for those precision rimfires built around a 700 receiver that can be so sensitive.

    The new ENVY Pro rifle chassis retains previous features such as the full-length ARCA Swiss/RRS dovetail, integrated QD sling cups, thumb rest provisions, bubble level and more.  All this was done while maintaining the superb strength and “deadness” our chassis are known for.

    ** Expect extended lead times due to how busy XLR is.
    Lead times are 20-25 weeks on all Envy Pro Chassis orders. We appreciate your patience **

    • Material: Machined from solid 6061 T-6 billet aluminum

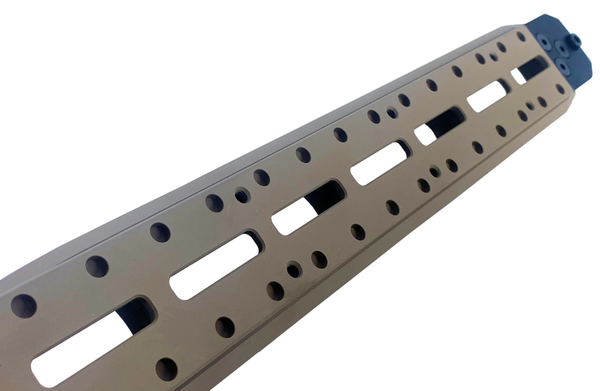

    • Arca-Swiss/RSS Railing: Integrated full-length RRS spec 1.5” dovetail (Arca Swiss)
    • M-LOK Compatible: Yes, the ENVY PRO chassis system is M-LOK compatible.
    • Detachable Magazines: Yes, the ENVY PRO chassis system comes standard with an integrated detachable box magazine system (Magazine sold separately).
    • Magazine Type: The ENVY PRO chassis system Utilizes AICS pattern magazines.
    • Bedding Required: No, XLR's multi-point radial cut inlet eliminates the need for traditional V-Block or Glass Bedding
    • Compatible Triggers: ENVY PRO chassis systems are compatible with most factory and aftermarket trigger systems.
    • Chassis Weight: ENVY PRO chassis system with TR-2 Buttstock and Ergo Grip weighs 4 pounds 3 ounces.
    • Integrated bubble level
    • Accepts AR Style Flat top grips.
    • Integrated serrated mag-well barricade stop
    • Mounting Provisions for Thumb Rest
    • 4 strategically placed Quick Detach sling swivel sockets
    • Large flared mag-well
    • Fully ambidextrous design

    View Chassis Dimensions

    Not sure it's the right chassis? The ENVY PRO chassis may be for you if.

    • you are... looking to build a rimfire chassis rifle for competition.
    • you are... looking to build a long range rifle.
    • you are... looking to compete in competition shooting.
    • you are... looking for a wide range of weight adjustments.
    • you are... interested in building a .22 caliber bolt action chassis rifle.
  • The ENVY PRO Chassis Can Be Inletted For:
    • Remington 700 SA (clones)
    • Remington 700 LA 3.850” (clones)
    • Kelbly Black Bear SA
    • Tikka T3 (short action calibers only)
    • Tikka T1 (factory magazine only)
    • Savage Short (top bolt release only)

    Don't see your action? Search your action here or check out our action inlet list page.

  • Cerakote Colors For Rifle Chassis

    XLR Rifle Chassis Can Be Cerakoted In The Following Colors:
  • Instructions: Click here for Chassis/Buttstock Instructions.

    Shipping: All chassis systems ship via FedEx Ground for a $20 flat rate, and are expected to be delivered in 3-5 business days (once shipped) within the continental U.S. CLICK HERE for more details.

    NOTE: The Magpul PRS Buttstock and similar buttstocks with molded-in anti-rotation dowels require modification to be used on our chassis system

    NOTE: Under license of U.S. Patents 10,132,583 and 10,215,519

    LEAD TIME: Approximate 20-25 week lead time depending on the configuration. Please call (970) 241-1807 for specific lead times.

Total Extras: $ 0.00
Total Build Price: $ 599.00
